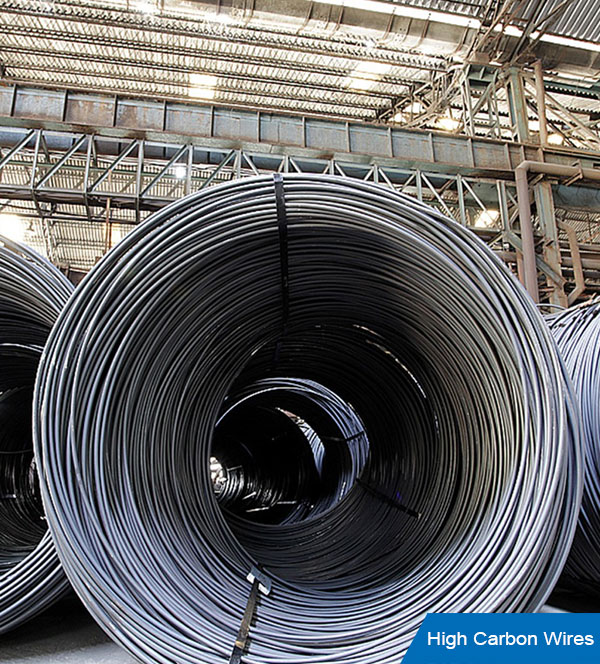

High Carbon Wires
Wire material : High carbon ,Size:7mm /8 mm.
I S grade: IS 1387:1993 (Uncoated stress relieved strand for pre stressed concrete)
- 1. Carbon: 0.76 to 0.8
- 2. Mn: 0.5-0.8
- 3. Sulphur: 0.040% max
- 4. Phosphorus: 0.040 % max
- 5. Si: 0.15-0.35
- 6. Cr: 0.15-0.20
Products manufactured
- UTS: 112 Kg/mm2
- Elongation: 12 %
- Reduction of area: 30%
HC wire products:
- 1. 4 mm indenting wire for Electrical poles & Hume pipes(IS 6003:2010)
- 2. 3 ply 3mm wire for Railway concrete sleepers after certification from Railway authorities(IS 6006:2014)
Suppliers:
- 1.RINL supplying 7 mm High carbon wire rod, Product name : PC 115
Production Capacity & Raw Material:
- i) 3ply 3mm PC Strand Wire as per BIS 6006 - Prod Capacity of 500 mts/month. (Used in Railway Sleepers)
- ii) 4mm Indented HTS Wire as per BIS 6003 - Prod Capacity of 500 mts/month. (Used in Electrical Pole Manufacturing and Prefabricated walls)
- Raw-material : HC Wire Rod Coils 7mm PC115 (RINL/JSPL)
